Name Rascal/Libraries/Vis/Figure/Figures/hcat

Synopsis Horizontal composition of a list of figures.

Function Figure hcat(Figures figs, FProperty props...)

Description Horizontal composition is a special case of grid. It is a grid with just one row. See grid for more information.

See also vcat.

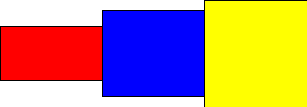

Examples

b1 = box(vshrink(0.5), fillColor("Red"));
b2 = box(vshrink(0.8),  fillColor("Blue"));
b3 = box(vshrink(1.0), fillColor("Yellow"));
render(hcat([b1, b2, b3]));

gives:

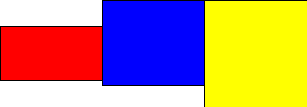

b2 aligned at the top:

b1 = box(vshrink(0.5), fillColor("Red"));
b2 = box(vshrink(0.8),  fillColor("Blue"),top());
b3 = box(vshrink(1.0), fillColor("Yellow"));
render(hcat([b1, b2, b3]));

gives:

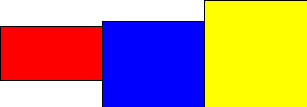

b2 aligned at the bottom:

b1 = box(vshrink(0.5), fillColor("Red"));
b2 = box(vshrink(0.8),  fillColor("Blue"),bottom());
b3 = box(vshrink(1.0), fillColor("Yellow"));
render(hcat([b1, b2, b3]));

gives:

All boxes aligned at the bottom:

b1 = box(vshrink(0.5), fillColor("Red"));
b2 = box(vshrink(0.8), fillColor("Blue"));
b3 = box(vshrink(1.0), fillColor("Yellow"));
render(hcat([b1, b2, b3],std(bottom())));

gives:
