Name Rascal/Libraries/Vis/Figure/Properties/gap

Synopsis Define minimal gap between figures in compositions.

Function FProperty gap(num h, num v)

Description Set the minimal horizontal gap between figures to h and the minimal vertical gap to v.

Also see hgap and vgap.

Note that:

• gap(hv) is equivalent to gap(hv, hv) and to hgap(hv), vgap(hv).
• gap(h, v) is equivalent to hgap(h), vgap(v).

Examples

b1 = box(fillColor("blue"));
b2 = box(fillColor("yellow"));
b3 = box(fillColor("green"));

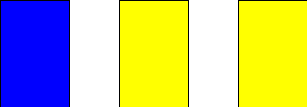

render(hcat([b1, b2, b2], gap(50)));

b1 = box(fillColor("blue"));
b2 = box(b1,hgap(50),vgap(10),fillColor("yellow"));
render(b2);

b1 = box(fillColor("blue"),left(),top());
b2 = box(b1,hgap(50),vgap(10),fillColor("yellow"));
render(b2);
