Name Rascal/Libraries/Vis/Figure/Figures/graph

Synopsis Graph layout.

Function Figure graph(Figures nodes, list[Edge] edges, FProperty props...)

Description Takes a list of nodes and a list of edges and draws a graph. The nodes can be arbitrary figures that should have a name (using the id property). The edges determine connections between named nodes.

The following constraints apply:

• All nodes should have an id property with a unique value.
• All edges should refer to ids that are defined by the nodes.

The following properties are applicable to graphs:

• id to define the identity of nodes and to define edges between nodes.
• hint determines the layout algorithm to use. Currently, only "layered" is supported.
• layer is used to define the placement of nodes in the same layer.
• orientation is used to define the drawing direction.
• toArrow and fromArrow are used to define arrows on edges.
• label defines an edge label.

Examples

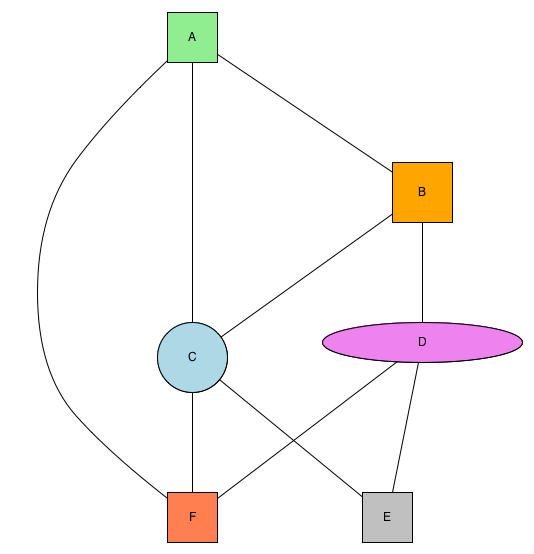

nodes = [ box(text("A"), id("A"), size(50), fillColor("lightgreen")),
     	  box(text("B"), id("B"), size(60), fillColor("orange")),
     	  ellipse( text("C"), id("C"), size(70), fillColor("lightblue")),
     	  ellipse(text("D"), id("D"), size(200, 40), fillColor("violet")),
          box(text("E"), id("E"), size(50), fillColor("silver")),
	  box(text("F"), id("F"), size(50), fillColor("coral"))
     	];
edges = [ edge("A", "B"), edge("B", "C"), edge("B", "D"), edge("A", "C"),
          edge("C", "E"), edge("C", "F"), edge("D", "E"), edge("D", "F"),
          edge("A", "F")
    	];
render(graph(nodes, edges, hint("layered"), gap(100)));

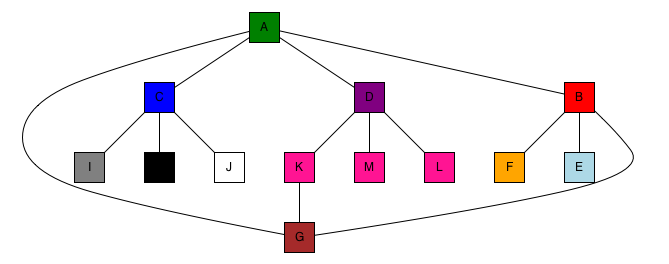

nodes = [ box(text("A"), id("A"), fillColor("green")),
     	  box(text("B"), id("B"), fillColor("red")),
     	  box(text("C"), id("C"), fillColor("blue")),
     	  box(text("D"), id("D"), fillColor("purple")),
     	  box(text("E"), id("E"), fillColor("lightblue")),
     	  box(text("F"), id("F"), fillColor("orange")),
     	  box(text("G"), id("G"), fillColor("brown")),
     	  box(text("H"), id("H"), fillColor("black")),
     	  box(text("I"), id("I"), fillColor("grey")),
     	  box(text("J"), id("J"), fillColor("white")),
     	  box(text("K"), id("K"), fillColor("deeppink")),
     	  box(text("L"), id("L"), fillColor("deeppink")),
     	  box(text("M"), id("M"), fillColor("deeppink"))
     	];
edges = [ edge("A", "B"), edge("A", "C"), edge("A", "D"),
    	  edge("B", "E"), edge("B", "F"), edge("B", "G"),
    	  edge("C", "H"), edge("C", "I"), edge("C", "J"),
    	  edge("D", "K"), edge("D", "L"), edge("D", "M"),
    	  edge("K", "G"), edge("A", "G")
    	];
render(graph(nodes, edges, hint("layered"), std(size(30)), gap(40)));

Figure n(str nm) = box(text(nm), id(nm), grow(1.2), fillColor(color("yellow", 0.7)));
nodes = [n("joe"), n("food"), n("dog"), n("tea"), n("cat"), n("table"), n("plate"),
         n("mouse"), n("cup"), n("spoon"), n("fork"), n("flea1"), n("flea2"), n("knife")];
edges = [edge("joe", "food"), edge("joe", "dog"), edge("joe", "tea"), edge("joe", "cat"),
	 edge("joe", "table"), edge("table", "plate"), edge("plate", "food"),
         edge("food", "mouse"),	edge("food", "dog"), edge("mouse", "cat"),
         edge("table", "cup"), edge("cup", "tea"), edge("dog", "cat"), edge("cup", "spoon"),
	 edge("plate", "fork"),	edge("dog", "flea1"), edge("dog", "flea2"),
	 edge("flea1", "flea2"), edge("plate", "knife")];
render(graph(nodes, edges, hint("spring"), size(500), gap(20)));

Pitfalls

• The layered graph layout performs currently best when:
  • the hgap is set to a value equal to the average width of the nodes.
  • orientation is not used.
• For spring layout the following do not yet work:
  • labels,
  • arrows.
